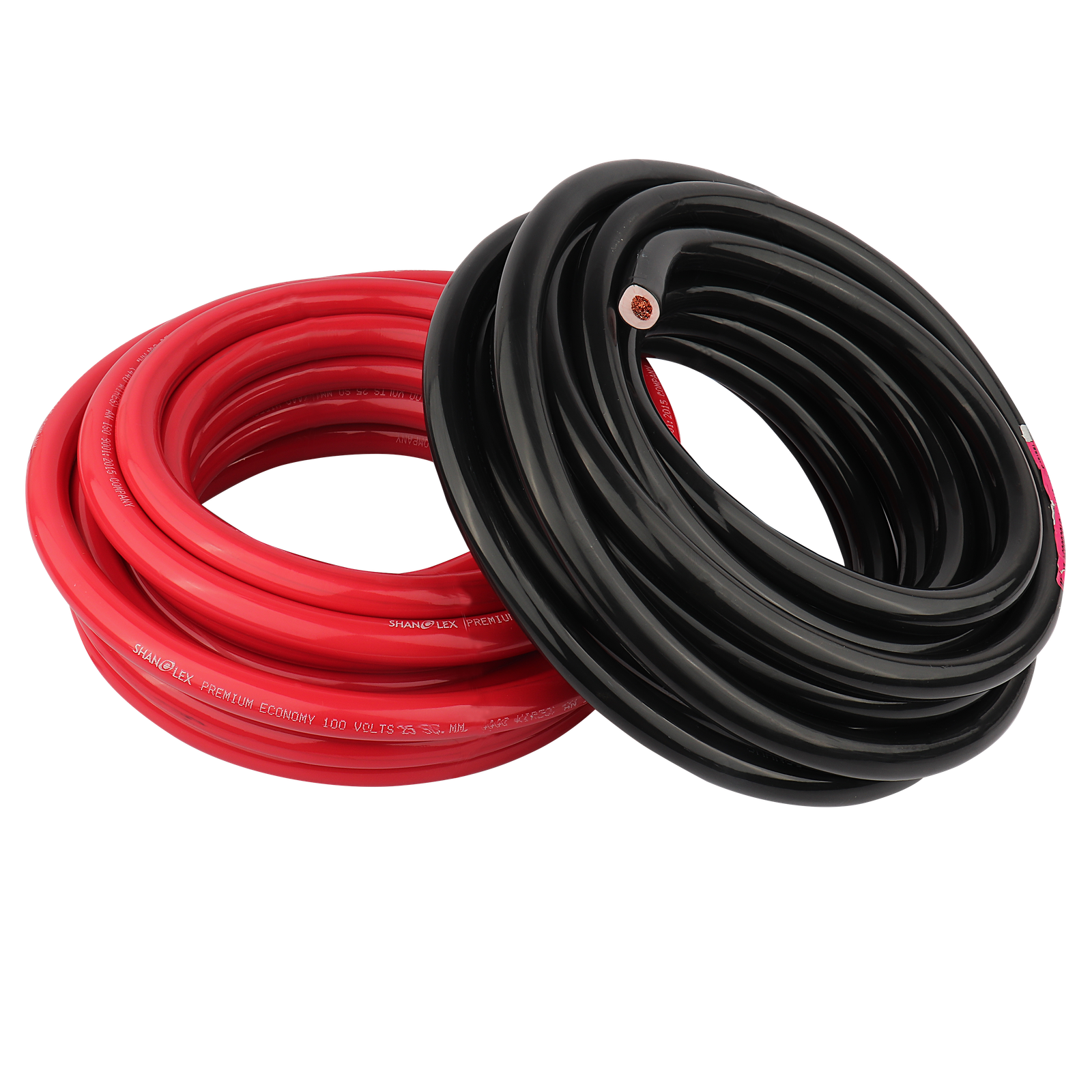

these are Low-tension electric wire for Automobiles.battery cables are used in all automobiles for starting, charging, lighting, signal and instrument panel circuits. It is ideally suited for extreme weather conditions. These cables undergo stringent quality checks during manufacturing process and at the final stage. They are available in red and black colours in 25-metre and 100-metre coils / drums. These cables are also used in other applications where batteries are used, e.g. telecommunication, power, computers, etc. where the D.C. voltage does not exceed 100 volts. These cables are long-lasting and ensure proper distribution of power in the vehicle.
Features:
Flame retardant
Highly resistant against acids, Petrol, and diesel
Flexible conductors with PVC thin wall insulation for smaller diameter and lesser weight.
Extra flexibility.
Technical Data
|
Conductor Construction |
Insulation |
Cable |
Max. |
Current |
Standard |
|||||
|
Nominal |
No. of |
Diameter of |
Conductor |
Overall |
Weight |
|||||
|
mm2 |
nos. |
mm |
mm |
mm |
mm |
kg/km |
ohm/km |
Amps |
Mtr |
|
|
16 |
126 |
0.4 |
5.7 |
1 |
8.1 |
171 |
1.21 |
90 |
500 |
|
|
25 |
196 |
0.4 |
7.1 |
1.2 |
10 |
263 |
0.78 |
118 |
500 |
|
|
35 |
276 |
0.4 |
8.5 |
12 |
11.4 |
357 |
0.554 |
146 |
500 |
|
|
50 |
396 |
0.4 |
10.3 |
1.4 |
13.7 |
506 |
0.386 |
185 |
500 |
|
|
70 |
360 |
0.5 |
12.4 |
1.4 |
15.8 |
703 |
0.272 |
237 |
500 |
|
